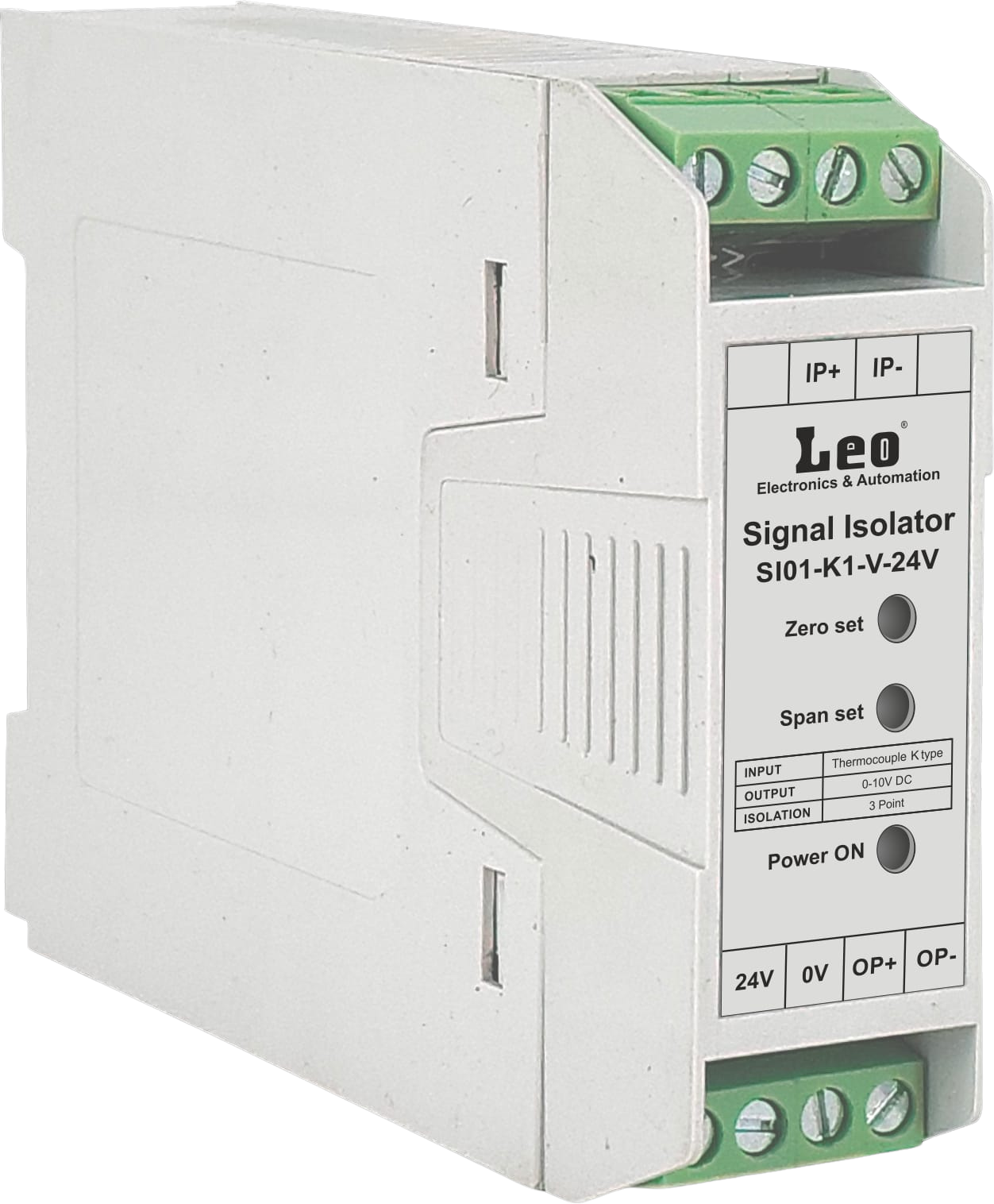

Analog Signal Isolator
Thermocouple (K Type) Input
Key Features :
- Zero Span Presets on front
- Accuracy : +/-0.25% at 50° C
- Built in CJC Compensation
- <1% output ripple & noise in output
- compact size
| Order code | Input | Output | Isolation | Aux supply | Dimensions (in mm) |
|---|---|---|---|---|---|
| SI01-K1-V-24V | -200 to +200°C | 0-10V |
3 Point Isolation, 2KVAC Input to Output Input to Aux supply Output to Aux supply |
24V DC, 100mA max 18V-36V |
22.5 x 75 x 107mm (WxHxD) |
| SI01-K1-I-24V | 4-20mA | ||||
| SI01-K2-V-24V | -100 to +100°C | 4-20mA | |||
| SI01-K2-I-24V | 0-10V | ||||
| SI01-K3-V-24V | -50 to +50°C | 0-10V | |||
| SI01-K3-I-24V | 4-20mA | ||||
| SI01-K4-V-24V | 0-100°C | 0-10V | |||
| SI01-K4-I-24V | 4-20mA | ||||
| SI01-K5-V-24V | 0-200°C | 0-10V | |||
| SI01-K5-I-24V | 4-20mA | ||||
| SI01-K6-V-24V | 0-300°C | 0-10V | |||
| SI01-K6-I-24V | 4-20mA | ||||
| SI01-K7-V-24V | 0-400°C | 0-10V | |||
| SI01-K7-I-24V | 4-20mA | ||||
| SI01-K8-V-24V | 0-500°C | 0-10V | |||
| SI01-K8-I-24V | 4-20mA | ||||
| SI01-K9-V-24V | 0-600°C | 0-10V | |||
| SI01-K9-I-24V | 4-20mA | ||||
| SI01-K10-V-24V | 0-700°C | 0-10V | |||
| SI01-K10-I-24V | 4-20mA | ||||
| SI01-K11-V-24V | 0-800°C | 0-10V | |||
| SI01-K11-I-24V | 4-20mA | ||||
| SI01-K12-V-24V | 0-900°C | 0-10V | |||
| SI01-K12-I-24V | 4-20mA | ||||
| SI01-K13-V-24V | 0-1000°C | 0-10V | |||
| SI01-K13-I-24V | 4-20mA | ||||
| SI01-K14-V-24V | 0-1100°C | 0-10V | |||
| SI01-K14-I-24V | 4-20mA | ||||
| SI01-K15-V-24V | 0-1200°C | 0-10V | |||
| SI01-K15-I-24V | 4-20mA |
